Bring every part of the room into focus

Combine 4K30 video, 12× optical zoom, intelligent tracking, and flexible AV connectivity for medium and larger meeting rooms. Pair it with suitable room audio for a complete conferencing solution.

Works with

Zoom

Microsoft Teams

Google Meet

Zoom Certified. Teams and Google Meet compatibility uses supported USB/UVC workflows; host and room-system requirements may vary.

Request an RC841U Demonstration View Specifications

RC841U Resources

Best suited forMedium and larger meeting roomsPresentations and trainingLive streaming and webcasting

Built for professional rooms

Clear views with intelligent control

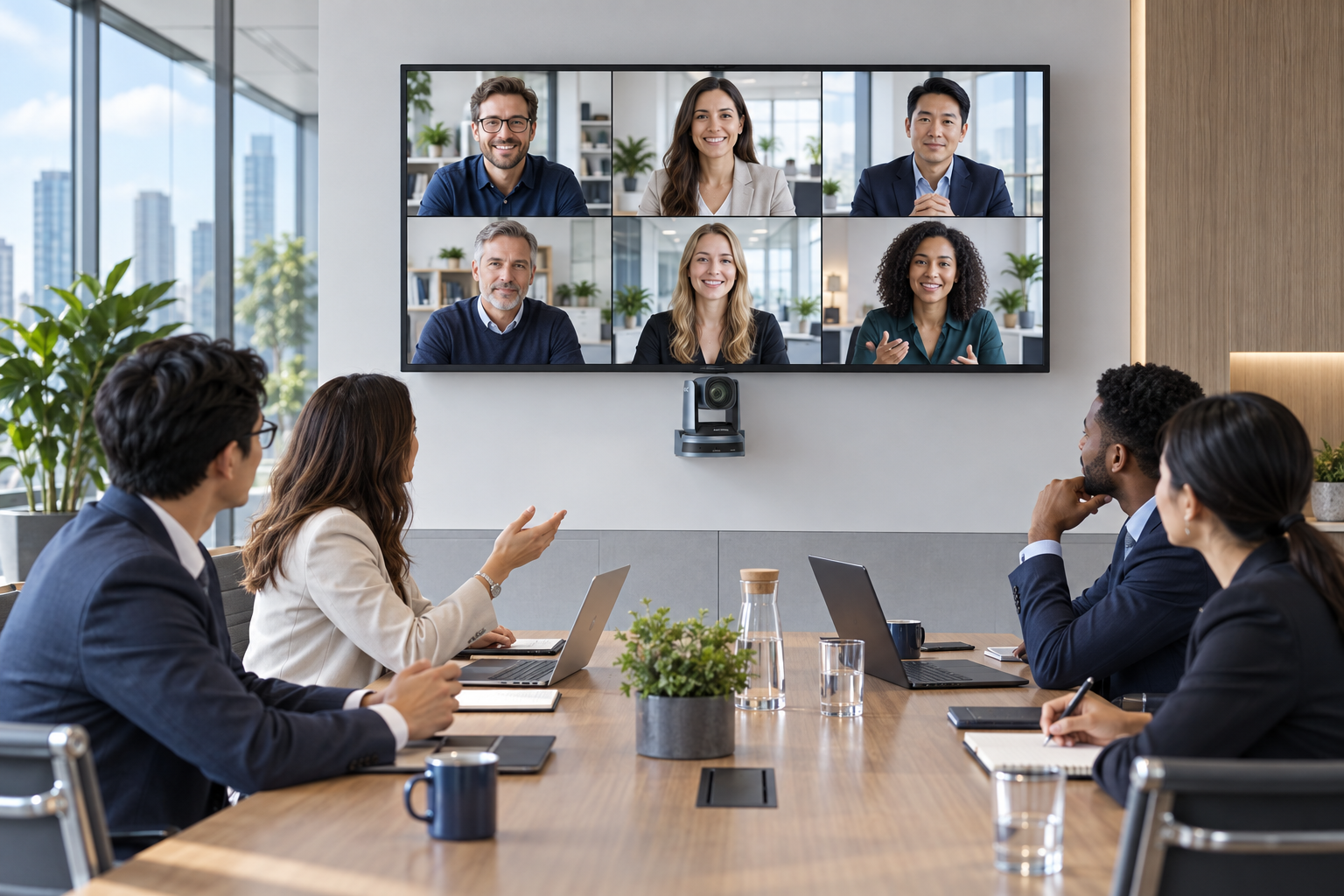

Modern conference room using an RC841U camera for a clear remote meeting

4K clarity for the room

A Sony 1/2.5-inch CMOS sensor delivers video up to 3840 × 2160 at 30 frames per second through supported outputs.

Comparison of wide room coverage and a close presenter view using RC841U optical zoom

12× optical reach

Frame a wide 80.8° room view or move to a 7.5° close-up while retaining optical detail across the primary zoom range.

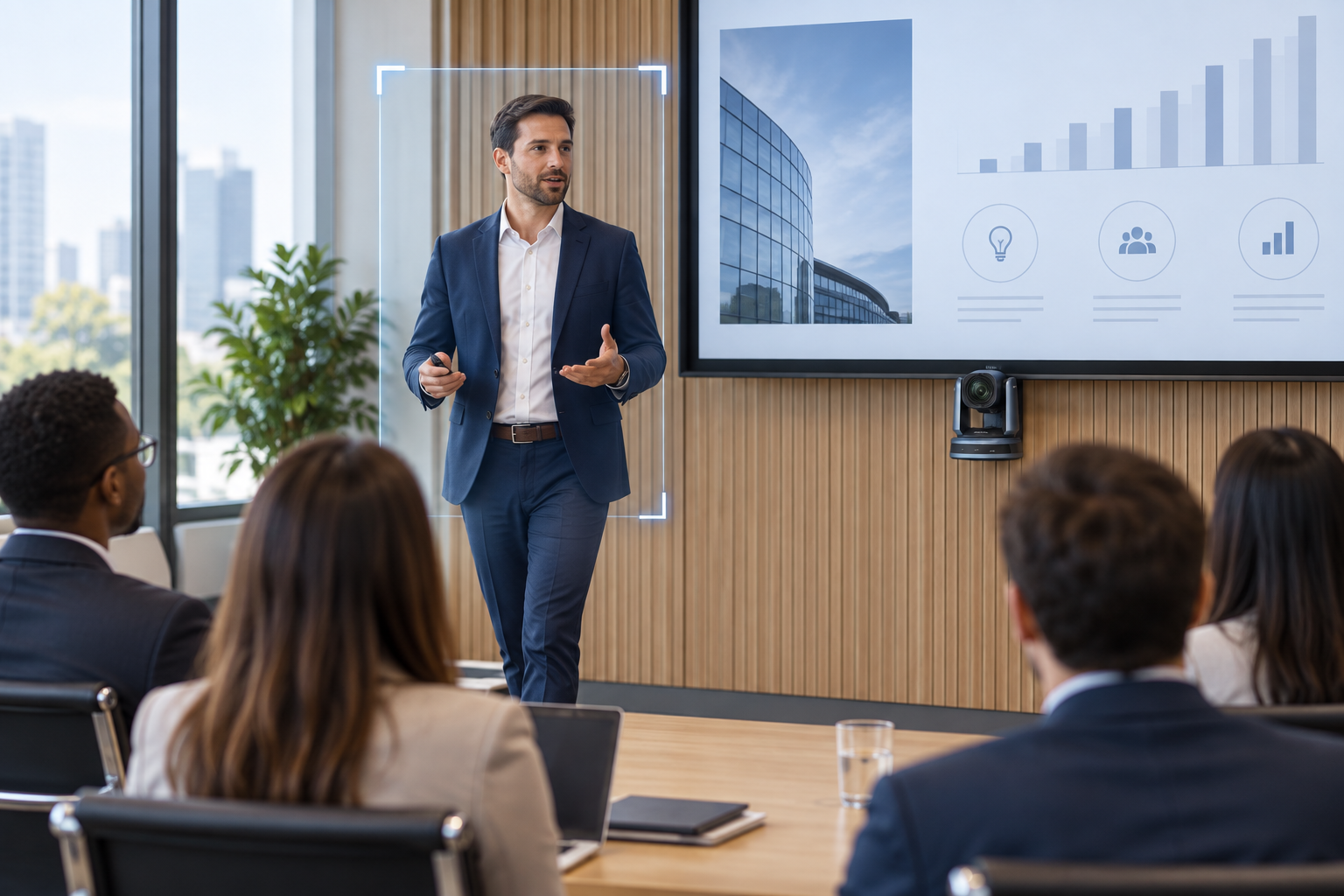

RC841U tracking a presenter in a professional training room

AI-assisted framing

Auto framing can compose the group, while humanoid tracking can follow a selected subject as they move.

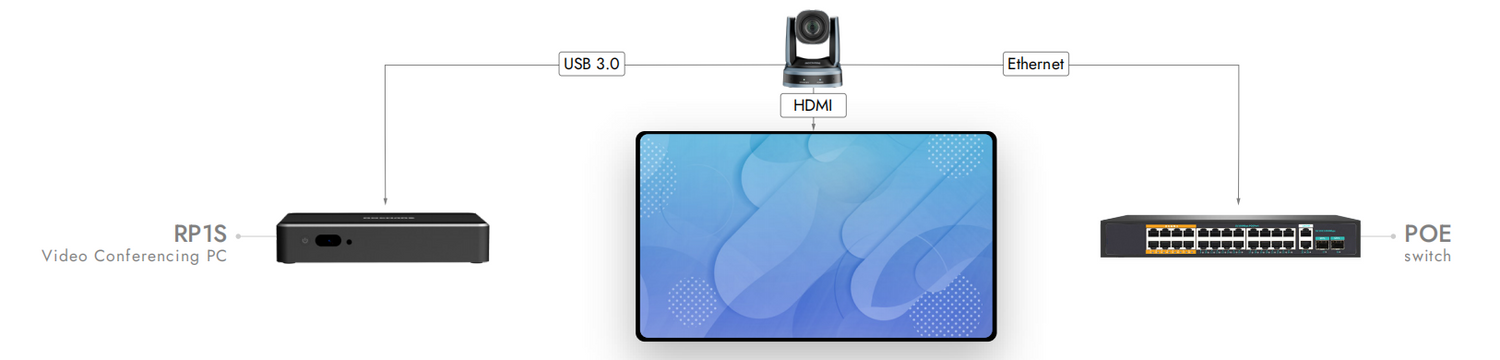

RC841U connection paths for USB 3.0, HDMI, Ethernet, and PoE

Flexible AV integration

USB 3.0, HDMI, IP video, RS-232 control, line input, and PoE support provide several paths into a room design.

Technical overview

RC841U specifications

Feature	Specification
Camera	Sony 1/2.5-inch CMOS; 8.51MP effective pixels; up to 3840 × 2160 at 30fps
Lens	12× optical zoom; f=3.47–41.65mm; F1.84–F3.72
Digital zoom	16×
Field of view	80.8° to 7.5° horizontal; 49.9° to 4.3° vertical
PTZ range	Pan ±170°; tilt -30° to +90°
Intelligent framing	Automatic group framing and humanoid tracking
Presets	255 presets; published preset accuracy of 0.1°
Video outputs	USB 3.0 Type-C, HDMI 1.4b, and network video
USB video	UVC 1.1–1.5; YUY2 up to 1080p30; MJPEG and H.264 up to 2160p30
Network	H.264/MJPEG dual streaming; TCP/IP, HTTP, RTSP, RTMP, ONVIF, DHCP, and multicast
Control	RS-232, network, and USB PTZ control
Power	DC 12V or PoE (802.3af); maximum published consumption of 12W
Dimensions and weight	142 × 152 × 176mm; 1.5kg

Specifications should be confirmed against the ordered RC841U configuration and current product revision before procurement.

Check the room fit

Is RC841U right for your room?

NCG can confirm camera position, optical reach, tracking mode, control, connectivity, and the separate audio design before procurement.

The room benefits from 4K30 video capture
12× optical zoom supports longer camera-to-seat distances
Auto framing or subject tracking fits the meeting format
USB, HDMI, IP video, or RS-232 control fits the AV design
Audio will be designed separately or as part of a room system
Zoom certification supports the selected Zoom Rooms workflow

Product resources

Access Rocware’s current RC841U planning, setup, and support materials.

Official RC841U resources

Open the current user manual, datasheet, flyer, quick-start guide, firmware, and support information.

Ready for a closer look?

See how RC841U fits your meeting room

Talk with Nex Cambro Gen about room fit, optical reach, tracking, connectivity, audio, and a live demonstration.

Read the conference room camera selection guide Request an RC841U Demonstration
