All-in-one. Plug and play.
A 4K camera, beamforming microphone array, and full-frequency speaker combine in one room-ready device.

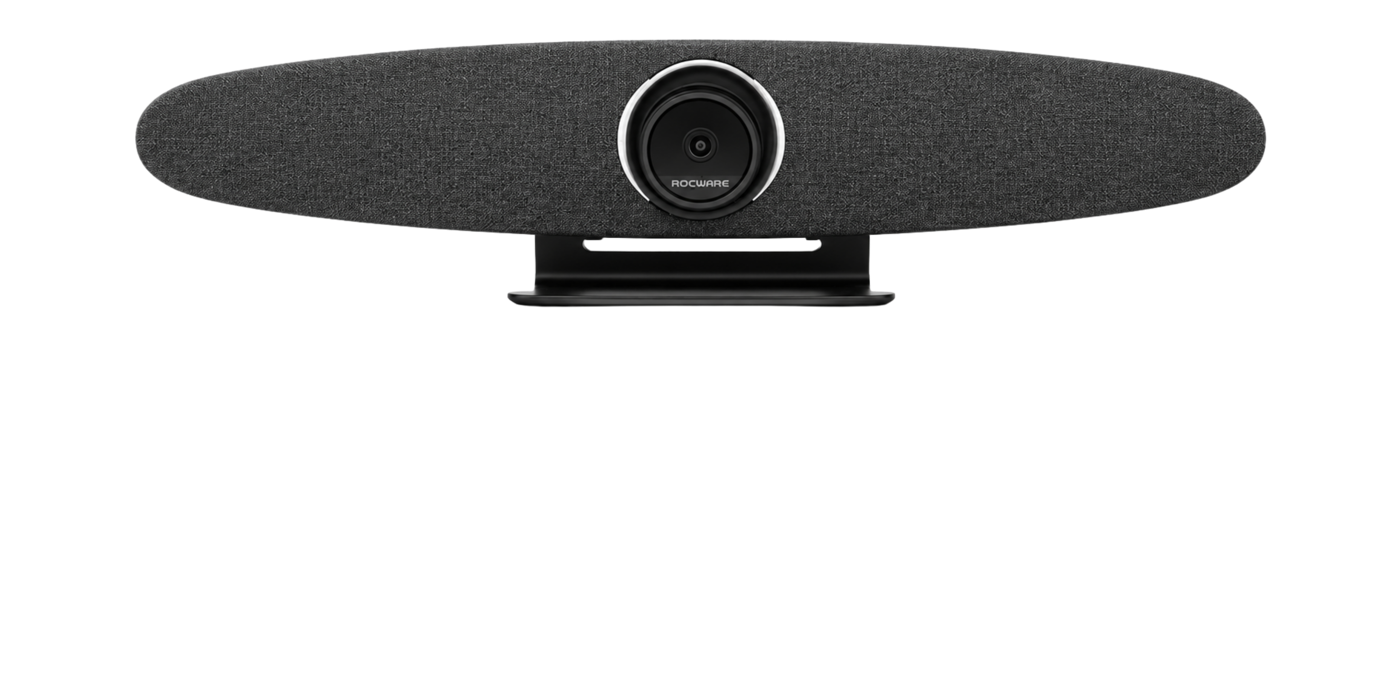

4K All-in-One USB Video Bar
Rocware RC10
Wide coverage. Clearer conversations. Simpler rooms.
Bring 4K video, a 121° diagonal field of view, intelligent framing, and integrated room audio into one video bar for huddle and small meeting rooms.
Works with
Zoom
Microsoft Teams
and other supported conferencing applicationsBest suited forHuddle roomsSmall meeting roomsMobile meeting setups
Rocware positions RC10 as a starting option for approximately 5–6 people in rooms under 15 m². Final suitability depends on room layout and acoustics.
Built for the way teams meet
Intelligent collaboration, made simple.
121° wide room coverage
A published 121° diagonal field of view helps include participants seated close to the display.

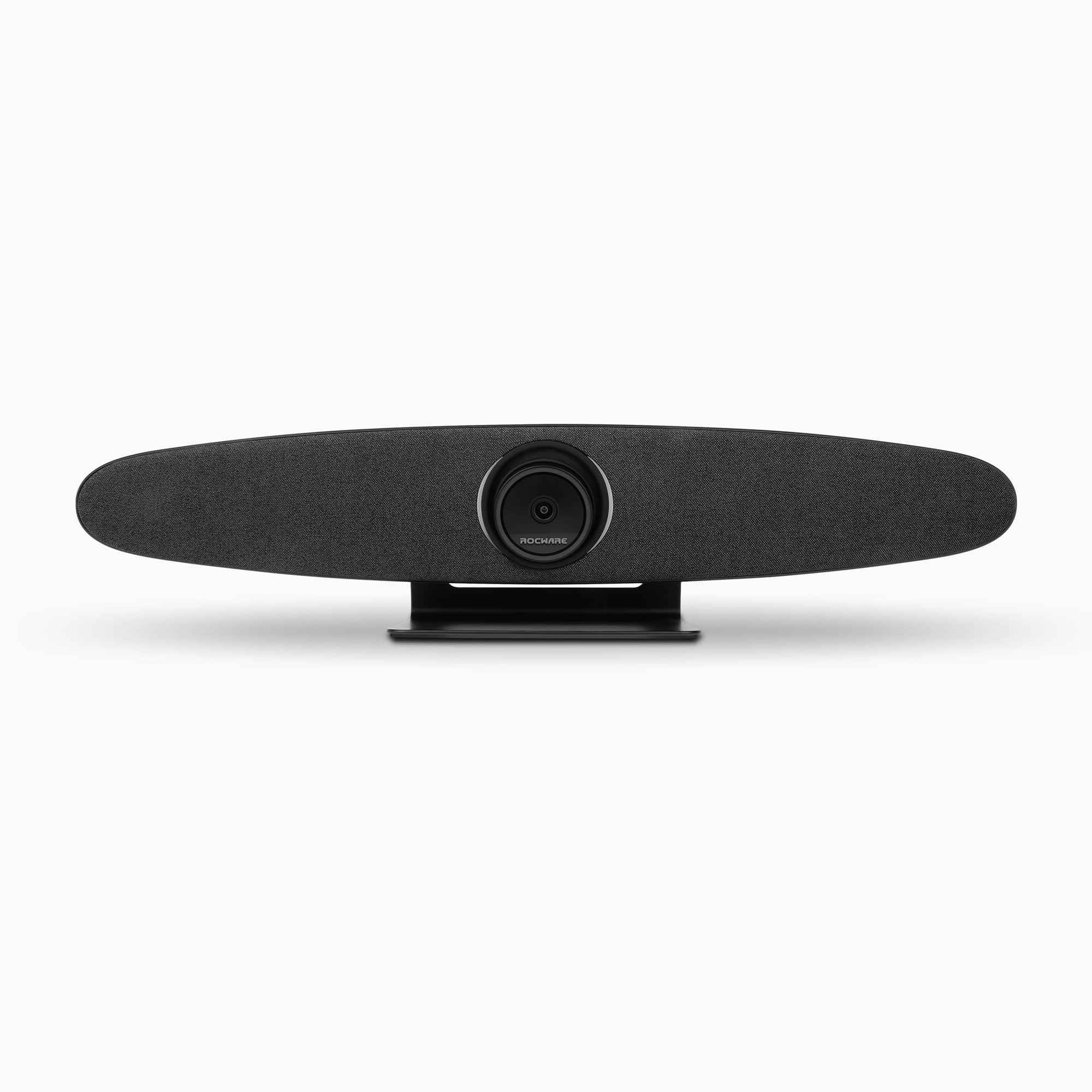

Auto framing and voice tracking
Auto framing adjusts the view as attendance changes, while voice tracking can follow the active speaker.

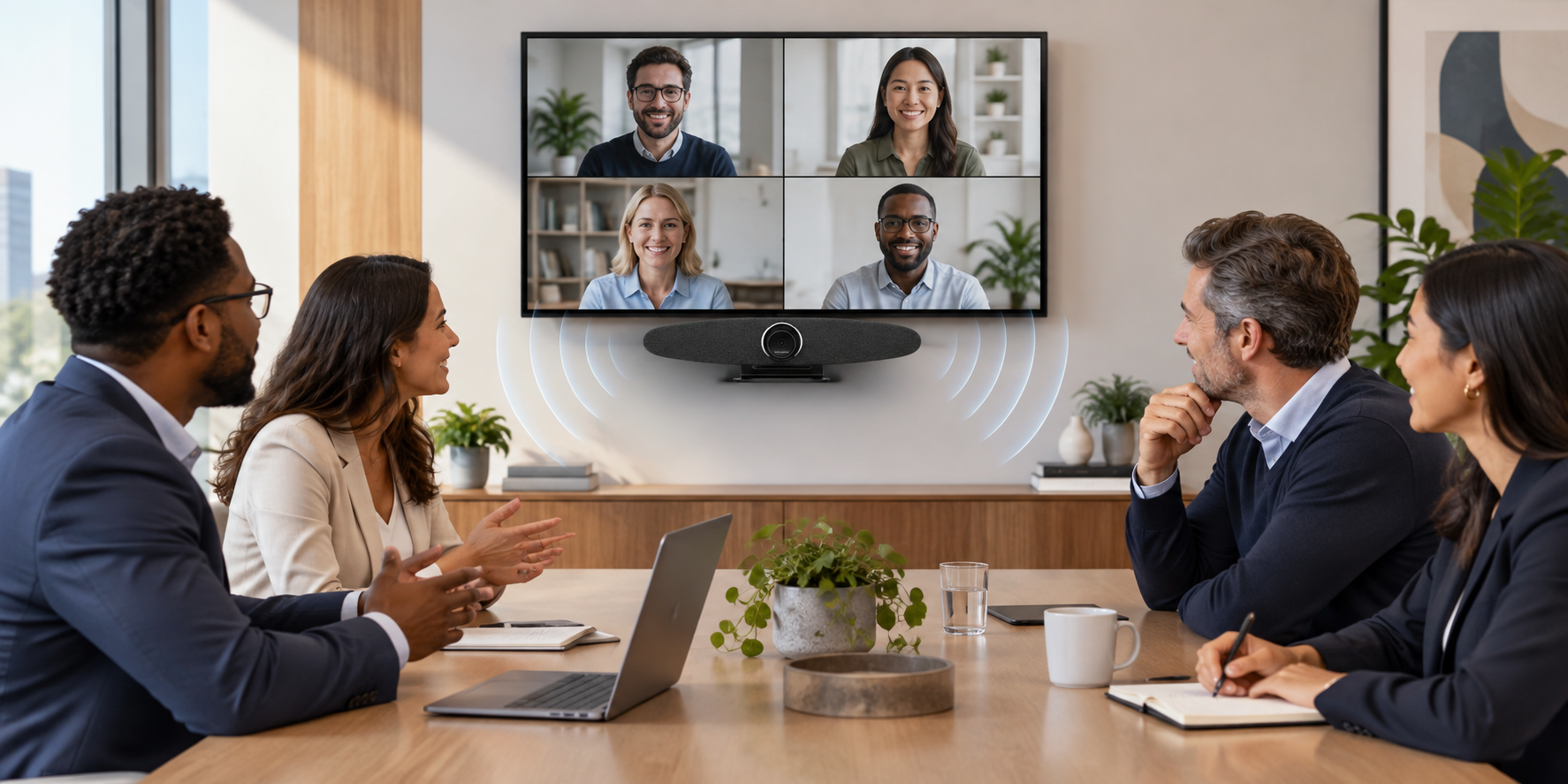

Professional room audio
Beamforming, echo cancellation, and noise suppression support full-duplex conversation across the room.
Technical overview
RC10 specifications
| Feature | Specification |
|---|---|
| Camera | 8.51MP 1/2.5-inch CMOS; up to 4K at 30fps |
| Field of view | 121° diagonal, 110° horizontal, 75° vertical |
| Zoom and movement | 5× digital zoom; mechanical PTZ and ePTZ; ±15° pan and tilt |
| Video processing | 2D and 3D digital noise reduction; backlight compensation |
| Intelligent framing | Auto framing and voice tracking |
| Microphone | Beamforming array with published pickup distance up to 6m |
| Expansion audio | Optional RM10 expansion microphone supported; connecting it switches voice tracking to auto framing |
| Speaker | Full-frequency speaker; 96dB SPL at 0.5m |
| USB | 1 × USB 3.0 Type-C; 1 × USB 2.0 Type-A; UVC 1.1 and UAC 1.0 |
| Other connections | 1 × HDMI 1.4b output; Bluetooth 5.0 data communication |
| Installation | Desktop, wall, and wall-mounted-TV installation options |
| Dimensions and weight | 601 × 141 × 115mm; 2.5kg |
Specifications are based on current Rocware manufacturer information and may change without notice.
Check the room fit
Is RC10 right for your room?
Use these points as a starting guide. NCG can validate the complete room and connection requirements before procurement.
- The space is a huddle or small meeting room
- Wide-angle coverage matters more than long optical zoom
- An all-in-one camera, microphone, and speaker are preferred
- USB conferencing fits the planned room workflow
- Auto framing or voice tracking supports the meeting style
- Optional expansion audio may be required for the table layout
Room dimensions, acoustics, display inputs, cable routes, host devices, and meeting-platform requirements remain project-dependent.
When an optional RM10 expansion microphone is connected, RC10 uses auto framing instead of voice tracking.
Product resources
Download the official RC10 documents for planning, setup, and operation.
Continue your research
Compare the RC10 with your room requirements
Plan your room with NCG
See how RC10 fits your meeting space
Talk with Nex Cambro Gen about room fit, connectivity, deployment, and a live product demonstration in the Philippines.
Request an RC10 Demonstration
