Two 4K views. One complete room.
A 120° panoramic camera captures the room while the close-up PTZ camera uses 12× optical zoom for detailed participant and presenter views.
Dual-Lens 4K All-in-One USB Video Bar
Rocware RB20
See the whole room. Follow every conversation.
Bring panoramic 4K coverage, 12× optical-zoom close-ups, intelligent framing, and integrated room audio into one video bar for medium and large meeting spaces.
Best suited forMedium meeting roomsLarge meeting roomsTraining and presentation spaces
Built for more active rooms
Panoramic context and close-up detail
AI-directed meeting views
Group framing, speaker framing, presenter tracking, and Smart Gallery help remote participants see the right view without constant manual control.

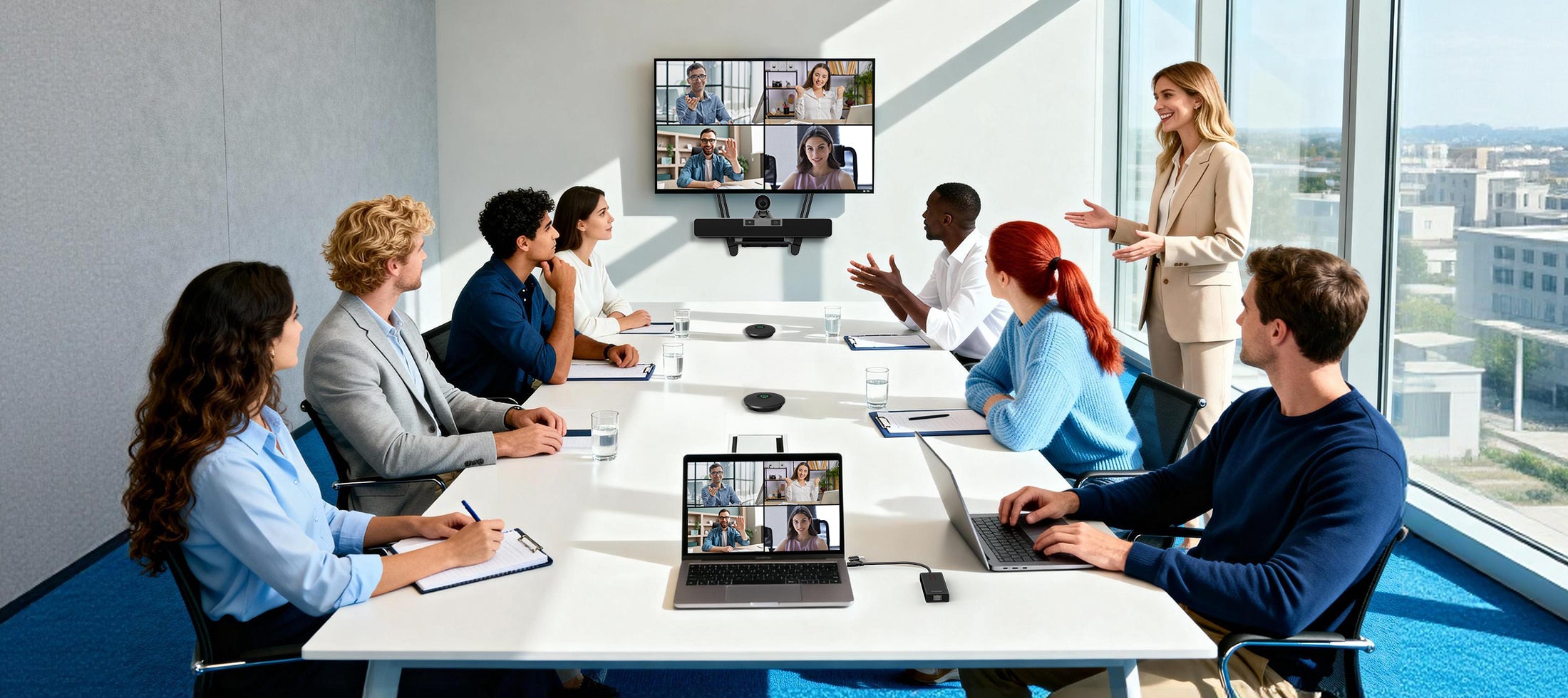

Flexible BYOM workflows
Use RB20 as a USB peripheral or add a compatible Rocware BYOM pod for wired or wireless laptop-based meetings and screen sharing.
Audio built for a longer table
Six beamforming microphones provide a published pickup distance of up to 8 metres, supported by two full-range 8W speakers.
Technical overview
RB20 specifications
| Feature | Specification |
|---|---|
| Close-up camera | 8.29MP 1/2.5-inch CMOS; 12× optical zoom; 70° to 7.4° horizontal FOV |
| Close-up PTZ | Pan -90° to +90°; tilt -23° to +23° |
| Panoramic camera | 8.51MP 1/2.8-inch CMOS; 120° diagonal, 110° horizontal, 75° vertical FOV; ePTZ |
| Video formats | 4K at 30fps; 1080p at 30/60fps; 720p at 60fps |
| AI modes | Presenter tracking, speaker framing, group framing, Smart Gallery, and gesture control |
| Microphones | Six beamforming microphones with a published pickup distance up to 8m |
| Expansion audio | Supports up to three microphones through the DMIC interface |
| Speakers | Two full-range speakers; 8W output per speaker |
| USB | USB 3.0 Type-C for audio/video and firmware; reserved USB 3.0 Type-A; UVC 1.1 and UAC 1.0 |
| Video and network I/O | 1 × HDMI input, 1 × HDMI output, Gigabit Ethernet, and EXT RJ45 with PSE (IEEE 802.3at) |
| Wireless | Wi-Fi 5 dual-band; wireless BYOM and screen sharing require an additional compatible device |
| Operating systems | Windows 8.1/10 or higher, macOS 10.10 or higher, Chromebook, and UVC-compatible Linux; Windows 7 limited to 1080p or below |
| Dimensions | Without stand: 600 × 127.1 × 182.1mm; with stand: 600 × 127.1 × 217.1mm |
| Weight | 4kg |
Specifications are based on Rocware’s current product page and supplied product documents and may change without notice.
Check the room fit
Is RB20 right for your room?
Use these points as a starting guide. NCG can confirm camera placement, audio coverage, host devices, and BYOM requirements before procurement.
Request a Room Assessment- The room needs both a panoramic and close-up view
- Participants sit far enough away to benefit from optical zoom
- Presenters move around the room
- Integrated microphones and speakers suit the acoustic plan
- USB peripheral mode fits the base workflow
- Optional BYOM or expansion microphones are planned separately
Wireless BYOM, wired BYOM, and screen sharing require compatible Rocware accessories. Final performance depends on room dimensions, acoustics, network design, and host-device support.
Product resources
Download the official RB20 documents for planning, setup, and operation.
