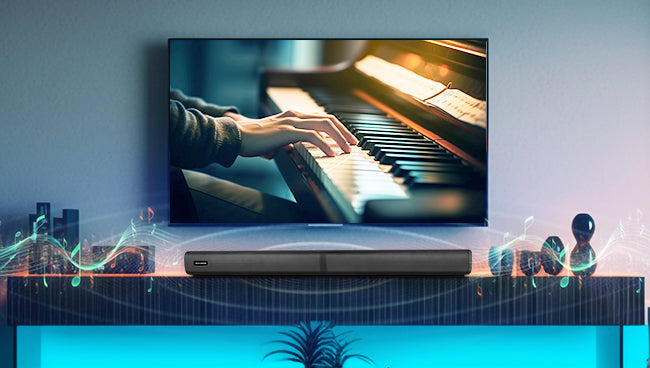

Tuned for clear, comfortable sound
Rocware describes the S22 as balanced for warm bass, natural midrange, and crisp high frequencies, supporting clear voices and comfortable listening in meetings.
Professional conference-room audio
Rocware S22
Clear, room-filling sound for larger meeting spaces
S22 is an active two-part Hi-Fi speaker system designed for professional conference rooms. Use its main and auxiliary speakers together beneath a display or split them across the room to suit the AV layout.
10W ×2 + 15W ×2110Hz–16kHzSplit or stackedWall or hanging
Best suited forBoardroomsTraining roomsPresentation spacesLarger meeting rooms
Built for professional rooms
Audio designed around the room
One system, flexible placement

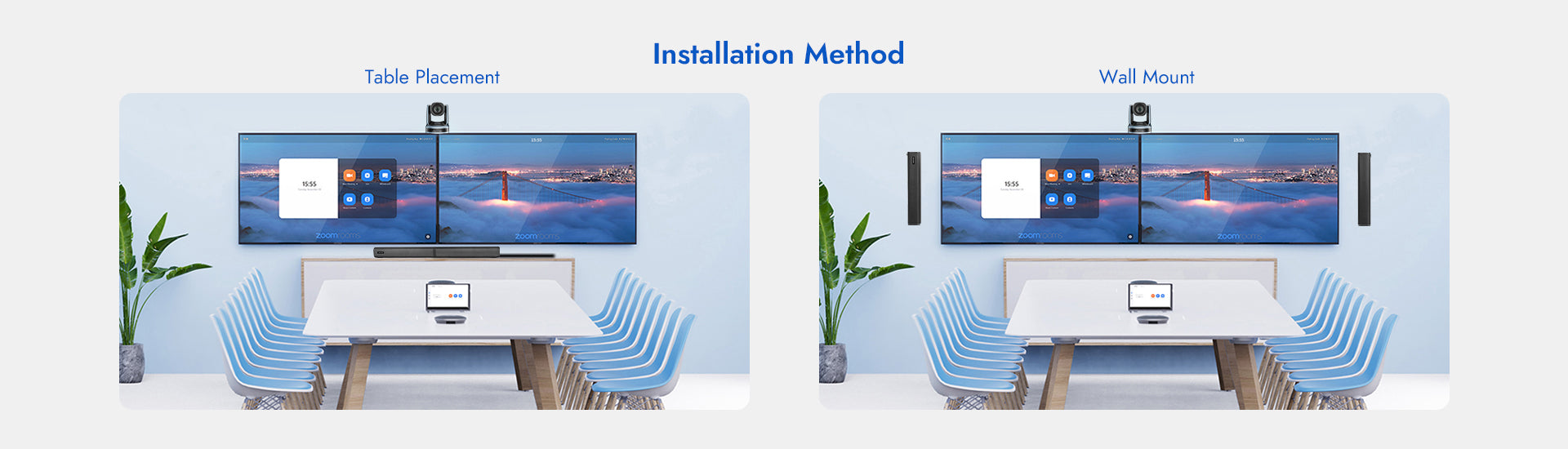

Install the main and auxiliary speakers together beneath a display or split them across the room. Wall and hanging installation are supported where the room design permits.
Straightforward audio connection

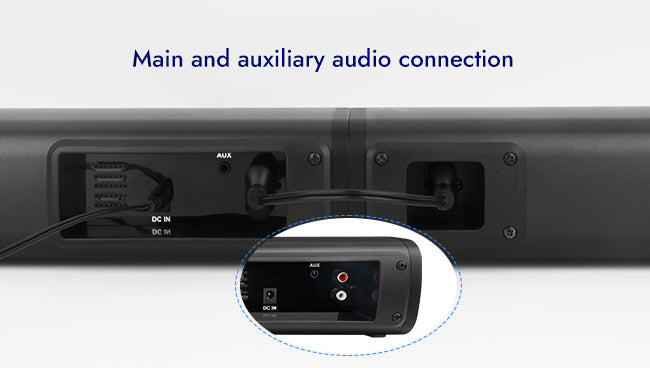

A 3.5mm line input receives the room audio signal, while the dual-channel RCA connection links the main speaker to the auxiliary speaker.
Built-in amplification
The active speaker design provides 10W ×2 plus 15W ×2 RMS output, giving integrators a compact audio option without specifying a separate power amplifier.
Technical overview
S22 specifications
| Feature | Specification |
|---|---|
| Product type | Active two-part Hi-Fi speaker system |
| RMS output power | 10W ×2 + 15W ×2 (±0.5 dB, 10% THD) |
| Impedance | 4Ω |
| Frequency response | 110Hz–16kHz, ±3 dB |
| Loudness | 50dB SPL at 1W; 95dB SPL at 7.5W |
| Signal-to-noise ratio | >65 dB |
| Sampling rate | 48kHz |
| Audio input | 1× 3.5mm line input |
| Speaker interconnection | 1× dual-channel RCA connection for the auxiliary speaker |
| Installation | Wall or hanging installation; split or stacked configuration |
| Power | DC 18V, 2A; published power consumption of 30W |
| Combined dimensions | 805 × 73 × 90mm |
| Main speaker dimensions | 408.5 × 73 × 90mm |
| Auxiliary speaker dimensions | 402.5 × 73 × 90mm |
| Published net weight | 1.5kg |
Confirm the specifications against the current S22 revision and ordered configuration before procurement.
Check the room fit
Is S22 right for your room?
NCG can assess room dimensions, speaker placement, source connectivity, mounting, and acoustic coverage before the system is specified.
- The room needs dedicated external loudspeakers
- A 3.5mm line-level source is available
- Split or combined placement fits the display wall
- Mounting points and cable paths can be planned safely
- Coverage is confirmed for the room size and seating layout
- Microphones and cameras will be selected separately
Plan the complete room
Hear how S22 fits your AV system
Talk with Nex Cambro Gen about speaker placement, sources, mounting, acoustic coverage, and the cameras and microphones needed for a complete meeting-room design.
