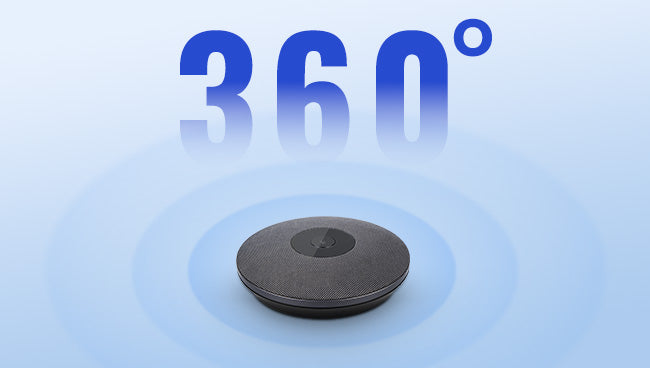

360° tabletop pickup
Six high-SNR microphones form a ring array for omnidirectional pickup, allowing participants to speak naturally around the table.
Scalable conference-room pickup
Rocware RM702A
Clear voices across more of the meeting table
RM702A is an AI-enhanced conference array microphone with 360° pickup, blind beamforming, and PoE cascading. Deploy a single USB-connected unit or distribute multiple microphones according to the room and seating layout.
6-mic ring array360° pickup3m per unitUp to 6 cascaded
Best suited forHuddle and meeting roomsMedium–large tablesDistributed pickupUSB conference audio
Built for natural conversation
Capture the room without crowding the table

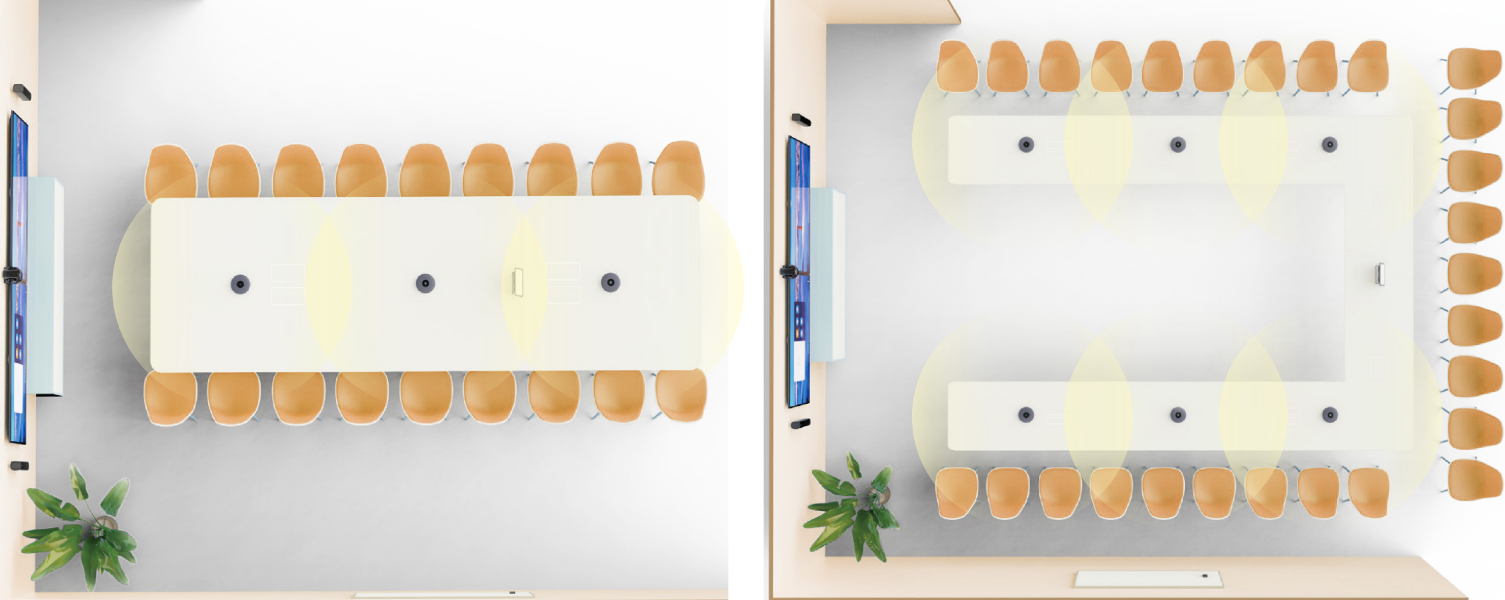

Coverage that scales with the room
Each unit has a published 3-metre pickup distance. Up to six microphones can be cascaded over PoE network cable for distributed room coverage.

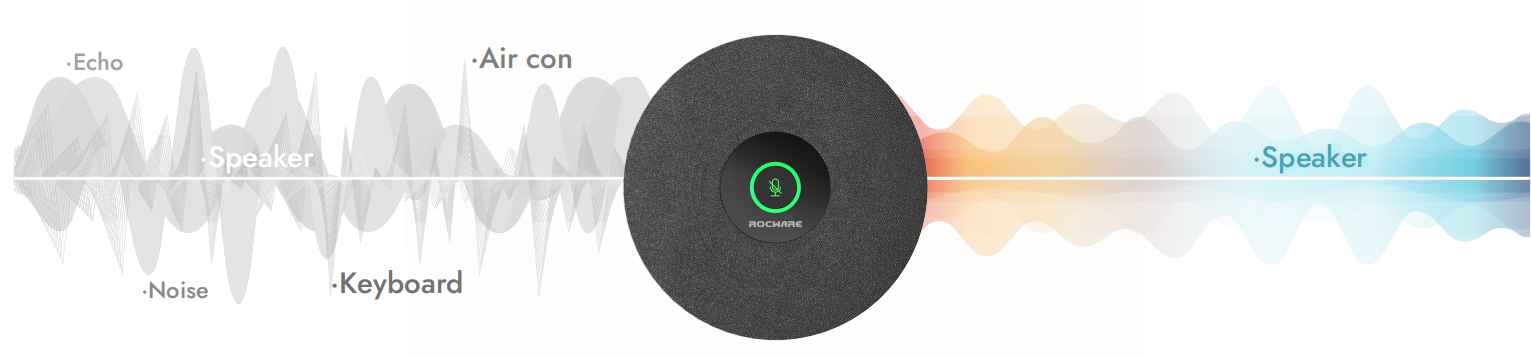

AI-enhanced voice processing
Blind beamforming helps locate the sound source, while noise suppression, gain control, and echo cancellation support clearer conference audio.

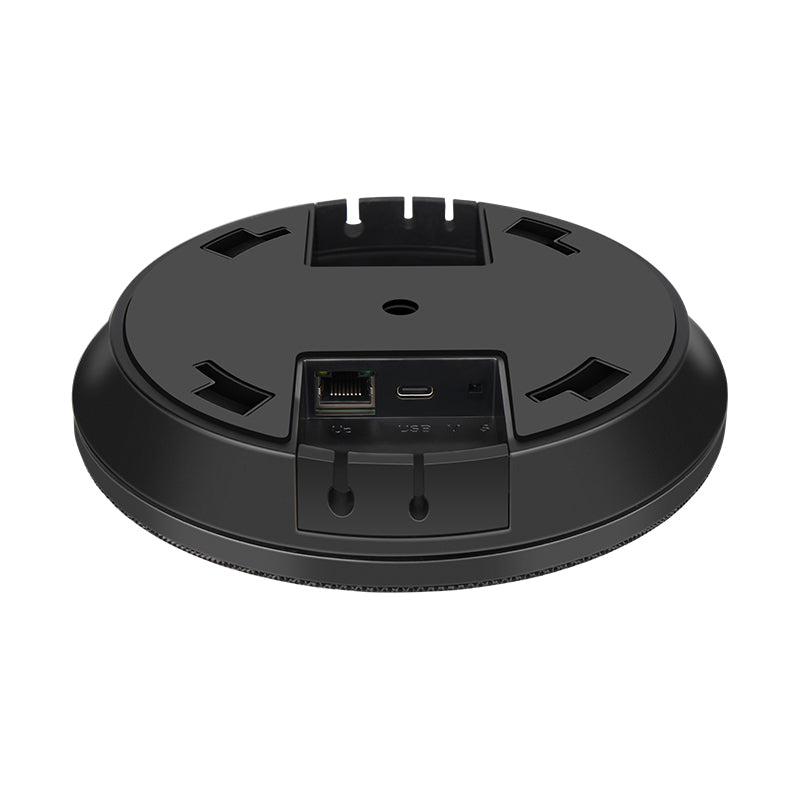

Digital, network, and analog connections
Use USB Type-C for UAC audio and configuration, RJ45 for cascading, and AUX1/AUX2 for compatible line-level audio workflows.
Technical overview
RM702A specifications
| Feature | Specification |
|---|---|
| Microphone type | Omnidirectional conference array microphone |
| Microphone array | Six high-SNR microphones in a ring array; 360° pickup |
| Sensitivity | -38dBFS |
| Signal-to-noise ratio | 65dB(A) |
| Frequency response | 50Hz–16kHz |
| Sampling | 32kHz HD broadband audio |
| Published pickup distance | 3 metres per microphone unit |
| Audio processing | Noise suppression, gain control, echo cancellation, and blind beamforming |
| Cascading | Up to six units using PoE network cable |
| Power | 48V PoE cascade, IEEE 802.3at; USB 5V 500mA for a single unit |
| USB | USB Type-C audio interface; USB 2.0, UAC 1.0 |
| Analog audio | AUX1 and AUX2 line-level input and output |
| Supported systems | Windows, macOS, and Linux |
| Installation | Desktop |
| Dimensions and weight | Ø170 × 40mm; 370g |
Confirm specifications, compatible devices, PoE topology, and the current RM702A revision before procurement.
Check the room fit
Plan pickup as part of the complete audio system
NCG can assess microphone quantity, positions, cable paths, PoE topology, USB host connection, room acoustics, and the separate loudspeaker design.
- Table layout supports tabletop microphones
- Each unit's 3m pickup area is mapped to seating
- Cascade quantity is selected for the room
- PoE and cable paths are planned before installation
- USB or line-level audio fits the conferencing system
- Speakers and cameras are specified separately
Design the complete audio path
Bring every seat into the conversation
Talk with Nex Cambro Gen about RM702A quantity, placement, cascading, acoustic coverage, and integration with the room's conferencing and loudspeaker system.
