USB 3.2 Gen 1 at up to 5Gbps
Extend high-speed USB data while retaining backward compatibility with USB 3.0, USB 2.0, and USB 1.1 devices.
USB 3.2 Gen 1 over HDBaseT
ReThink RAV-EX-UA100-Tx/Rx
Formerly RAV-USB-HDBT3.2TXRX
Extend high-speed USB devices up to 100 metres.
Connect cameras, microphones, storage, printers, keyboards, mice, and control devices to one remote host through USB 3.2 Gen 1 extension over a single Cat6a cable.
Signal pathUSB hostCat6a up to 100m4× USB-A devices
Best suited forAV roomsLearning spacesCamera systems
USB where the room needs it
Bring remote peripherals back to one host.
Connect four devices at the receiver
Place professional cameras, microphones, storage, printers, keyboards, mice, or other USB-A peripherals where the room needs them.

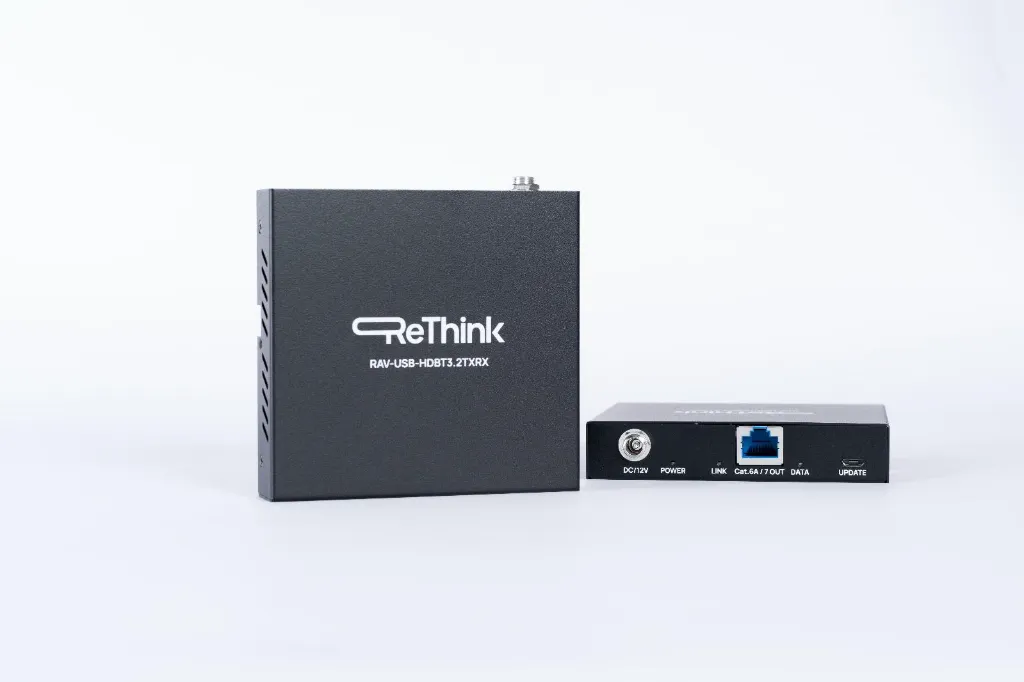

Up to 100 metres over Cat6a
Bridge the distance from the host computer to remote peripherals through one compatible Cat6a cable and HDBaseT connection.
Control pass-through and simpler power
Carry RS-232 and FSYNC alongside USB, with Power over Cable allowing the complete system to be powered from the transmitter.
Technical overview
RAV-EX-UA100 specifications
| Feature | Specification |
|---|---|
| Current model | RAV-EX-UA100-Tx/Rx |
| Former model | RAV-USB-HDBT3.2TXRX |
| Product type | Four-port USB-A HDBaseT transmitter and receiver extender kit |
| USB standard | USB 3.2 Gen 1; backward compatible with USB 3.0, USB 2.0, and USB 1.1 |
| Maximum bandwidth | 5Gbps |
| Extension distance | Up to 100m over compatible Cat6a cable |
| Transmitter | 1× USB-B host input, 1× RJ-45 HDBaseT output, RS-232/FSYNC, service port, and locking 12V DC input |
| Receiver | 1× RJ-45 HDBaseT input, 4× USB-A device outputs, RS-232/FSYNC, service port, and locking 12V DC input |
| Control extension | RS-232 and 3.3V FSYNC GPIO pass-through |
| Power | 12V/3A locking supply; Power over Cable; system powered from the transmitter |
| Power consumption | 8.78W without USB load; 31.28W with USB ports fully loaded |
| Installation | Plug and play; no device drivers required; compatible with multiple operating systems |
| Protection | ESD protection: ±8kV air-gap discharge and ±4kV contact discharge |
| Dimensions | 105 × 100 × 20.5mm per transmitter or receiver |
| Weight | Transmitter: 280g; receiver: 270g |
| Operating environment | 0°C–45°C; 10–90% RH, non-condensing |
| Compliance | TAA compliant; CE, FCC, UKCA, RoHS, and REACH listed by the manufacturer |
| Country of origin | Taiwan |
Specifications are based on ReThink manufacturer documentation and may change without notice.
Check the USB path
Is RAV-EX-UA100 right for your system?
Use these points as an initial guide. NCG can verify the host, peripheral, cable, bandwidth, control, and power requirements before procurement.
Request a USB-Path Review- The host computer and USB peripherals are separated by up to 100 metres
- A compatible direct Cat6a cable route can connect the transmitter and receiver
- The connected devices operate within USB 3.2 Gen 1 bandwidth and power limits
- Up to four remote USB-A device ports are required
- RS-232 or FSYNC pass-through supports the control workflow
- A plug-and-play extender without endpoint drivers suits the deployment
Confirm the cable construction and termination, host operating system, peripheral bandwidth and power demand, endpoint compatibility, grounding, surge protection, and installation conditions for each project.
Product resources
Download the official RAV-EX-UA100 documents for specification, installation, and connection planning.

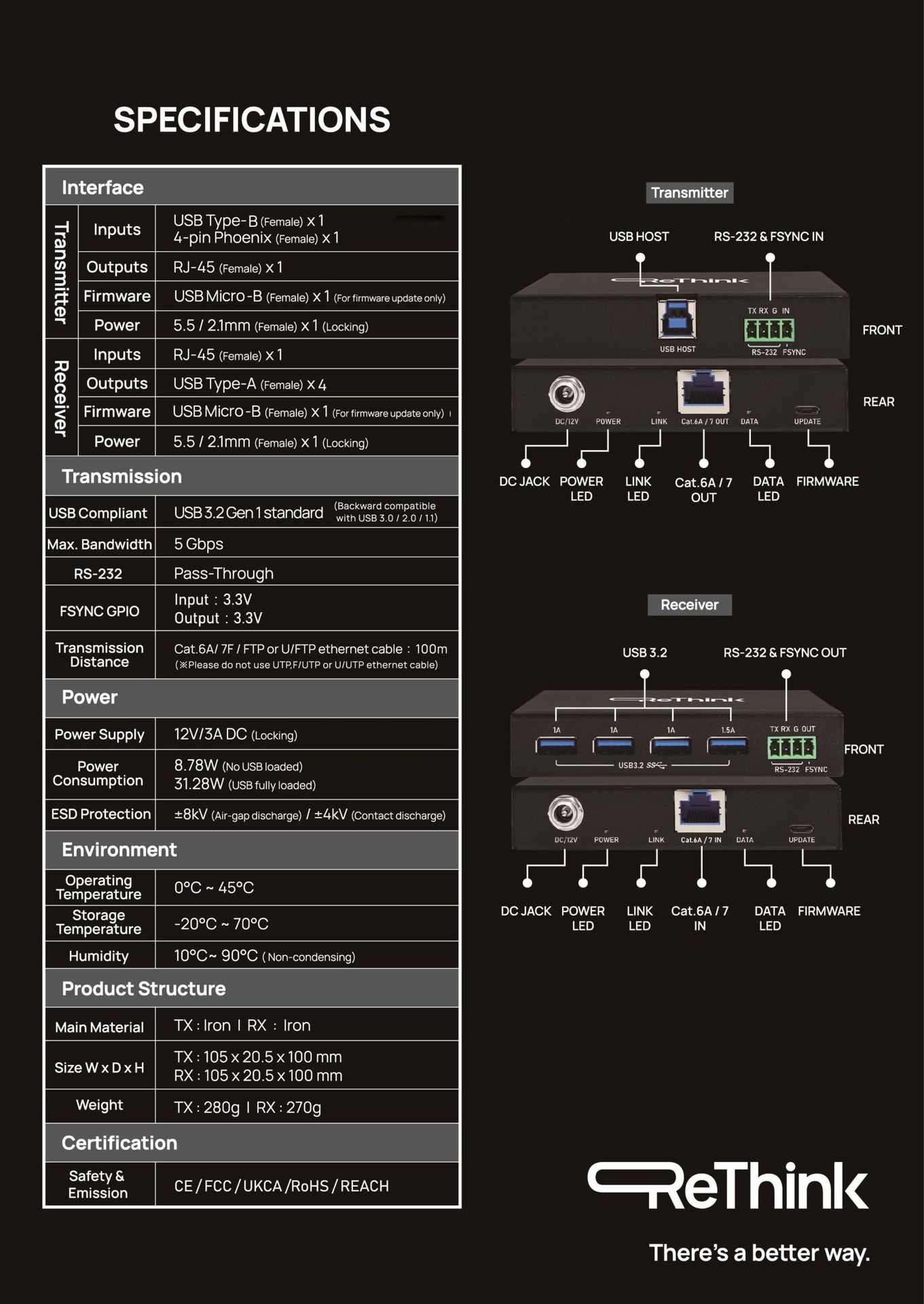

Specification sheet
Interface, transmission, power, environmental, and physical specifications.
User manual
Installation guidance, connector functions, operating controls, and application details.
Product brochure

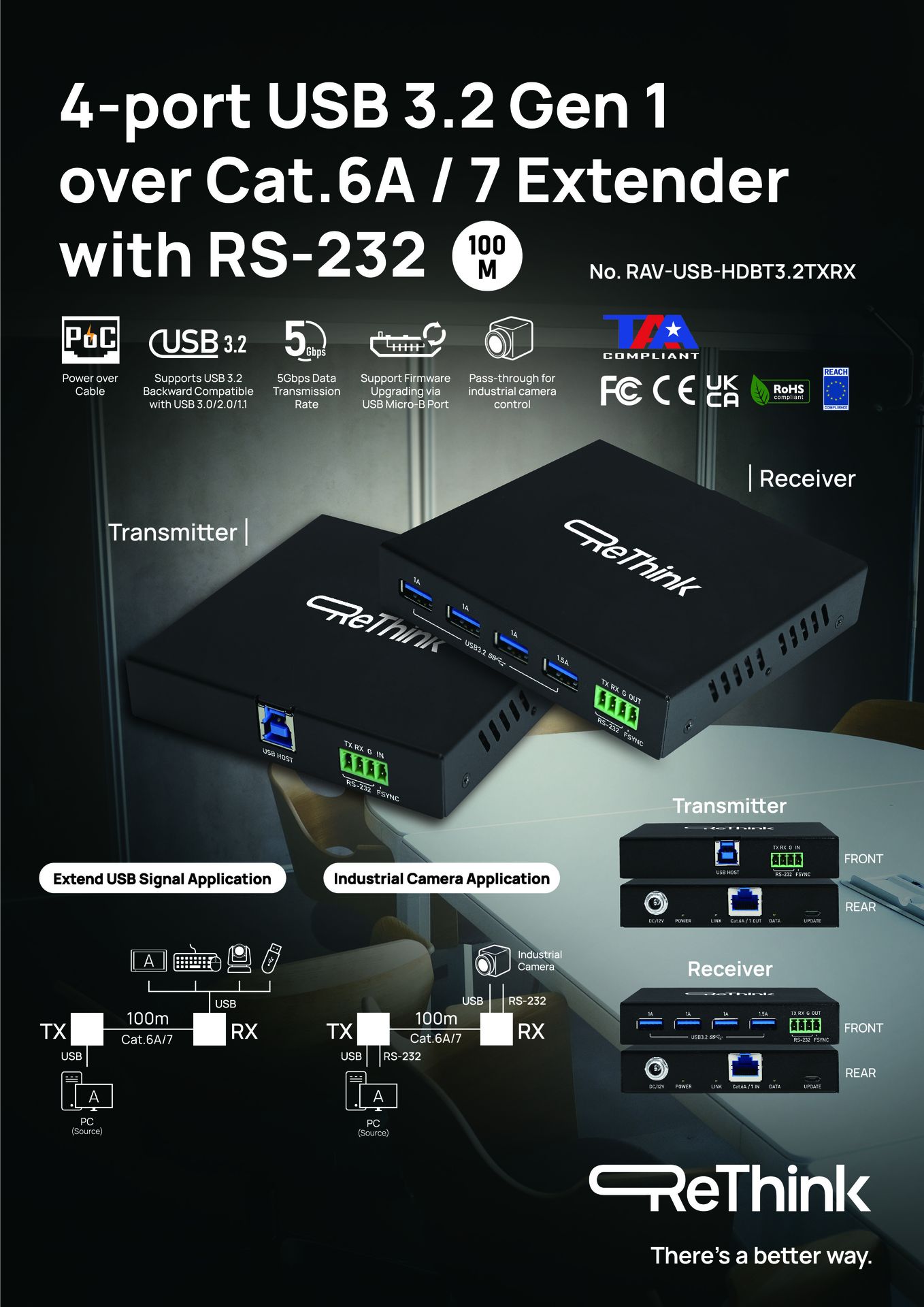

Product overview, supported applications, principal capabilities, and compliance marks.
