Uncompressed 4K60 signal extension
Carry video up to 4K2K at 60Hz RGB/YCbCr 4:4:4 with 18Gbps bandwidth and zero-delay transmission.
4K60 HDMI HDBaseT Extender
ReThink RAV-EX-H70-Tx/Rx
Extend uncompromised 4K video up to 70 metres.
Carry uncompressed 4K60 4:4:4 video, multi-channel audio, and IR control over one Cat6/6a cable, with bi-directional Power over Cable for a cleaner professional AV installation.
Signal pathHDMI sourceCat6/6a up to 70mHDMI display
Best suited forMeeting roomsClassroomsControl rooms
One link across the room
Preserve signal quality. Simplify the infrastructure.

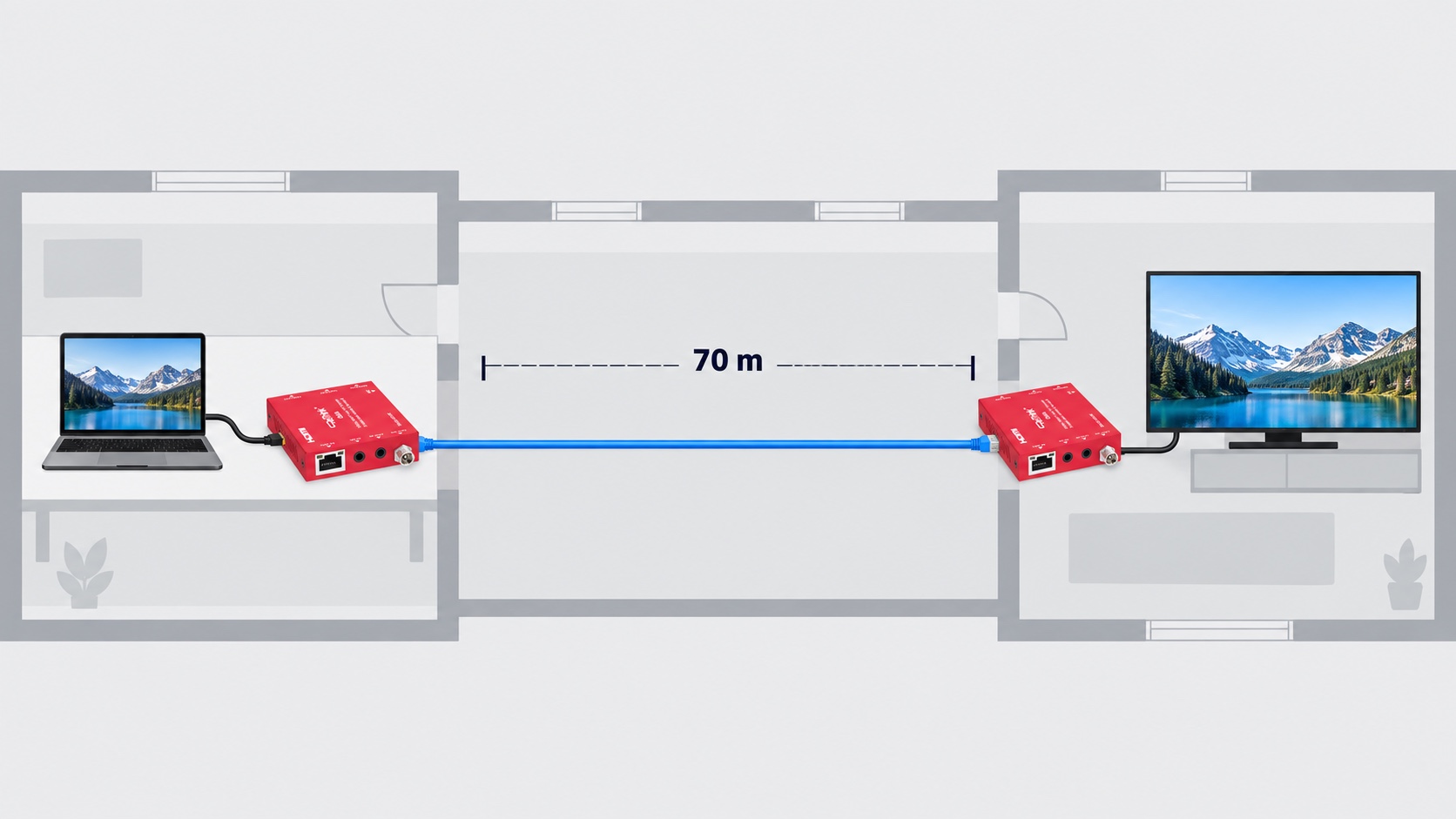

Up to 70 metres over one cable
Bridge the distance between source equipment and the display through a direct Cat6/6a connection up to 70 metres.
Local loop output and EDID control
Connect a local HDMI display at the transmitter while EDID copy pass-through helps coordinate the source and destination display.
PoC, IR, ARC, and optical audio
Power the pair from either end, pass bi-directional IR control, and use ARC or TOSLINK audio de-embedding where the system requires it.
Technical overview
RAV-EX-H70 specifications
| Feature | Specification |
|---|---|
| Product type | HDMI 4K60 HDBaseT transmitter and receiver kit |
| Video resolution | Up to 4K2K at 60Hz RGB/YCbCr 4:4:4 |
| Video bandwidth | 18Gbps |
| Extension distance | Up to 70m for 4K60 4:4:4 and 1080p over Cat6/6a |
| Standards | HDMI 2.0b and HDCP 2.2 compliant |
| Colour support | RGB and YCbCr 4:4:4, 4:2:2, and 4:2:0; 8/10/12-bit colour depth |
| HDR support | HDR, HDR10, HDR10+, Dolby Vision, and HLG |
| HDMI audio | LPCM 7.1CH, Dolby TrueHD, and DTS-HD Master Audio |
| Optical audio | Dolby 5.1, DTS 5.1, and PCM 2.0 |
| Control | Bi-directional wideband IR pass-through, 20kHz–60kHz |

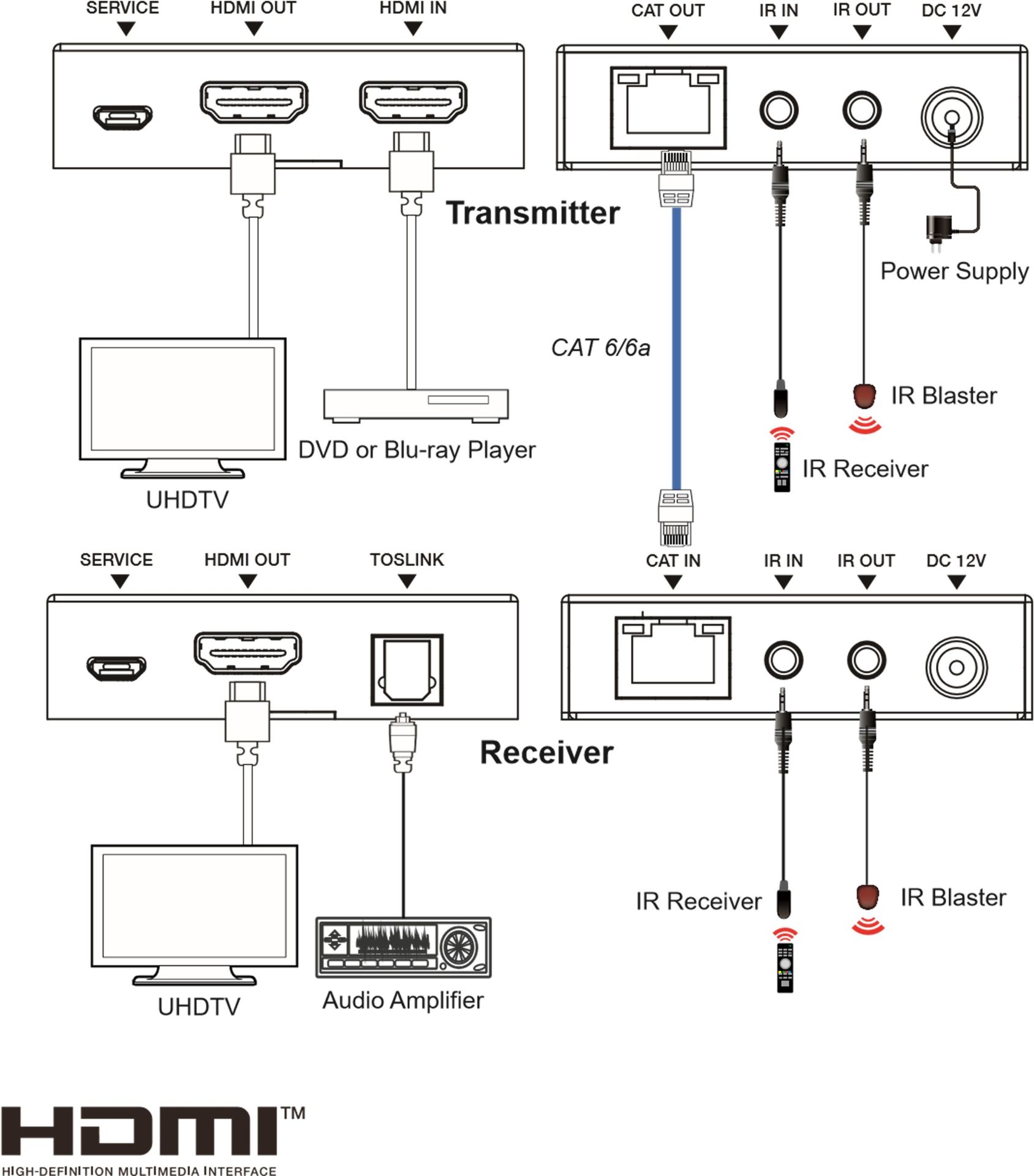

| Transmitter connections | HDMI input, local HDMI loop output, Cat output, service port, IR input, and IR output |
| Receiver connections | Cat input, HDMI output, TOSLINK output, service port, IR input, and IR output |
| Power | 12V/1A; bi-directional Power over Cable; 3.36W maximum consumption |
| Dimensions | 90 × 68 × 18mm per transmitter or receiver |
| Weight | Transmitter: 160g; receiver: 155g |
| Operating environment | 0°C–40°C; 20–90% RH, non-condensing |
Specifications are based on ReThink manufacturer documentation and may change without notice.
Check the signal path
Is RAV-EX-H70 right for your AV system?
Use these points as an initial guide. NCG can verify the source, display, cable route, control, audio, and power requirements before procurement.
Request a Signal-Path Review- The HDMI source and destination are separated by up to 70 metres
- A direct Cat6/6a cable route can connect the transmitter and receiver
- The complete source-to-display path supports the required HDMI and HDCP standards
- A local HDMI loop output is useful beside the source equipment
- Bi-directional IR or optical audio output is required
- Powering the transmitter or receiver from one end simplifies installation
Cable type and termination, endpoint compatibility, EDID, HDCP, grounding, surge protection, and installation conditions should be confirmed for each project.
Product resources
Download the official RAV-EX-H70 documents for specification, installation, and connection planning.
Plan it before you install it
Build a dependable 4K signal path across the room.
Talk with Nex Cambro Gen about cable routes, endpoint compatibility, control, power, deployment, and the correct ReThink connectivity solution.
